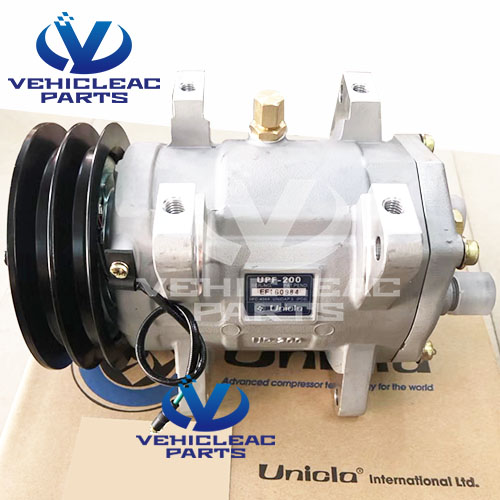

UNICLA UP200 2B 145 Compressor, Rear Fitting
Truck Refrigeraion Units Compressor Unicla UPF-200 Compressor Rear Fitting Description
Unicla UPF-200 is specially designed for refrigerated truck vehicle transportation, so the internal parts have been specially strengthened, with an oil return port, and POE oil has been injected so that it can use R404 refrigerant
Unicla Ø145mm 2G B UP200 is one kind of refrigerated truck compressor for Van & Truck Refrigeration system, with 24V voltage, 2B grooves, 145 clutch, and the pulley diameter of clutch is 145mm, Rear Fitting, adopts Unicla 10-cylinder swashplate design, the displacement is 200 cc/rev, Maximum continuous can be reach 6000 rpm, which is very suitable for applications with a Van & Truck Refrigeration Unit system capacity requirement of 6-11 kW
The Features of Unicla UP200 | UPF200 Compressor Rear Fitting in Van & Truck Refrigeration Unit
1. Best Quality, using forged steel cylinder housing, Genuine NSK bearings throughout; Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
2. Fast Delivery
3. Best Service, smooth and quiet operation with excellent performance through all rev ranges
4. Long Life, clockwise and counterclockwise rotation with no change in volumetric efficiency
5. Competitive Price
6. Good seal, ensure big cooling capacity, adopts Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal); lip seal with high tolerance to heat and operational fatigue.
UNICLA UPF200-4215 2B 145 Rear Fitting Van & Truck Refrigeration Unit Compressor Details Introduction
OE NO.:UPF200
Place of Origin:China (Mainland)
Part No.: 21004-14015
Clutch Type: Ø145mm * BB DC.24V
Serial No. EF160997
Fitting Direction: Rear fitting
Brand Name:VehicleACParts
Size: 19*19*27
Car Model: for Unicla UPF200
Pulley Diameter:145mm
Compressor Model: truck refrigeration compressor
Grooves: 2B
Voltage: 24v
Means: 39*29*40 CM
Type: Unicla 10-cylinder Swashplate Compressor
Car Make: for Unicla UPF 200
Model Number: R
Quality: High class
Appearance: Outstanding
Supply Ability
1000 Piece/Pieces per Month
UNICLA UPF 200 145 COMPRESSOR of Van & Truck Refrigeration Unit Packaging & Delivery Details
Single package : 32*21.5*21.5cm 10.5kgs
Qty: 4 PC/CTN ,Means:39*29*40 CM , G.W.: Around 32kgs
Port : Qingdao , Tianjin , Lianyungang, Ningbo, Shanghai
UNICLA UPF 200 2B 145mm 24V Compressor Truck Refrigeration Units Parts Supplier - VehicleACParts
VehicleACParts is a professional supplier in Truck Refrigeration Units Parts, Van Refrigeration Units Parts, we can offer all parts such as compressor for Bitzer, Bock,Denso, Unicla, Thermoking & Clutch & Shaft seal & Condenser fan & Blower motor and Control panel etc.
