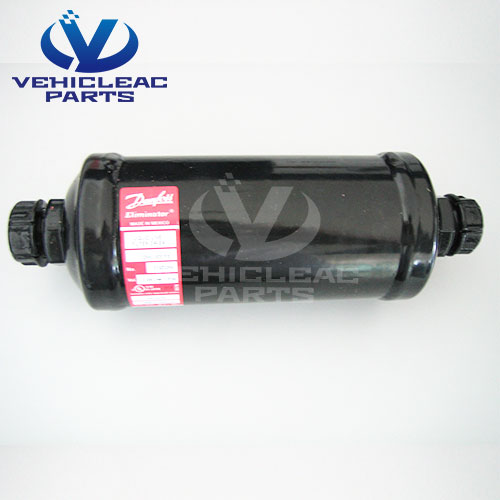

DML305 FS Danfoss Filter Dryer 023Z0264

 Bus clima Receiver Drier DML305 FS Danfoss Hermetic Filter Dryer 023Z0264 is one parts of Bus air conditioner Receiver Drier which is mainly used for storing refrigerant, filtering impurities and drying the bus HVAC, truck refrigeration units environment in the whole vehicle refrigeration system.



Detail Introduction of DML305 FS Danfoss Filter Dryer Bus Clima Drying Bottle / Receiver Drier 023Z0264

Product name: Bus A/C Parts DML305FS Danfoss Hermetic Filter Dryer
Warranty: 1 year
Place of Origin: ShangHai, China (Mainland)
Brand Name: VehicleACParts
Item name:  Bus Air Conditioner Receiver Drier Filter
Type: Filter Drier, welding gas fitting
Industry: auto parts
Danfoss OEM:   023Z0264
Uses: Oil and water separation
Drive mode: Freestanding
Control mode: Bus HVAC Automatic adjustment
Filter Type: Inside is Ceramsite Tube
Principle: Adsorption method
Industry: auto Bus HVAC parts
Color: Black
Applied refrigerant: R134A,R404A,R407C,R410A,R507C
Other name: filter drier, Freon Filter, dehydrator, Receiver drier
Dimensions: 76 mm x 240 mm
Material: Molecular sieve
Overall length: 240 mm
filter diameter: 76 mm
Output diameter: 25 mm
Copper fitting :5/8"


Bus Air Conditioner DML305 FS Danfoss Hermetic Filter Receiver Dryer 023Z0264 Application :

Big bus Air Conditioner Receiver Drier, Van Air Conditioner Receiver Drier, School Bus Air Conditioner Receiver Drier, Citybus Air Conditioner Receiver Drier, Yutong Bus A/C Receiver Drier etc.
Car Model: Big Bus Air Conditioner, Van air conditioning, Kinglong Bus Air con, Yutong Bus A/C etc.

DML305 FS Danfoss Filter Dryer 023Z0264 used for Truck Refrigeration Units:
AP-II / APII / AP2 / AP 2
ASR-140 / ASR 140 / ASR140
ATHENIA
CRT-I / CRTI / CRT1 / CRT 1
CRT-II / CRTII / CRT2 / CRT 2
Citi-RT / CiTiRT / Citi RT
Citi-SG / CiTiSG / Citi SG

DML 305FS Filter Drier for Thermo king Truck Refrigeration Unit:
/

DML 305FS Filter Drier Fits Zanotti Refrigeration Truck Unit
/

DML305 FS Danfoss Filter Dryer 023Z0264 used for Bus Air Conditioner:
HRT-1000 / HRT1000 / HRT 1000
HRT-1004 / HRT1004 / HRT 1004
HRT-1012 / HRT1012 / HRT 1012
HRT-I / HRTI / HRT1 / HRT 1
HRT-II / HRTII / HRT2 / HRT 2
IRV-HVAC / IRVHVAC / IRV HVAC
KRS
KRT1000 / KRT 1000
LRT-III / LRTIII / LRT3 / LRT 3
MRT-III / MRTIII / MRT3 / MRT 3
SR-70 / SR70 / SR 70

DML 305FS Filter Drier for Carrier Sutrak Bus air conditioner



DML305 FS Danfoss Hermetic Dehydrator Filter Receiver Dryer 023Z0264 Catalog OEM Number:

Carrier Receiver Drier
24-06010-54, 240601054, 24-0601054, 24.06.01.054

Thermo King Dehydrator Drier
66-9352, 669352, 669-352, TK669352
DO314, TKDO314
DO334, TKDO334
DO419, TKDO419
DO533, TKDO533

Danfoss Freon Filter
DCL 305 FS
DML305FS 023Z0264
023Z0653

Autoclima Freon Filter Drier
60652201
COD 60652201

Iveco Receiver Filter Drier
503128416

Benz Filter Drier
A6278300058
6278300058

1C75607H01
D1128

2C52867G01
42545638
42549852
42557462
503128416
8000000682
800000068O
8000000682HO
8000000682MO
8862090000700



Packaging & Delivery of Bus A/C Parts DML305FS Danfoss Hermetic Filter Dryer 023Z0264

Packaging Details
Single packed.One piece per box.10 boxes per carton.Customers' detailed package requirements are available.
Port: Qingdao , Lianyungang , Shanghai, Ningbo,
Lead Time :15-20 days after confirmed


The Role of DML305 FS Danfoss Hermetic Filter Dryer In Bus Air Conditioner

There are three main functions of the Bus air conditioner Receiver Drier, including storing refrigerant, filtering impurities and drying the bus HVAC environment, the details are as follows:

1. Storage refrigerant:
The bus air-conditioning drying bottle / Receiver Drier  stores the refrigerant required for the air-conditioning work, and the refrigerant can be mobilized in time to assist its work when the bus air-conditioning system is working. The harder the air conditioning system works, the more refrigerant it needs.
2. Filter impurities:
The citybus air-conditioning drying bottle / Receiver Drier can filter out the impurities generated in the bus car pipeline and the air-conditioning compressor, so as to avoid the normal operation of the car air-conditioning system due to the blockage of impurities.
3. Dry bus HVAC environment:
The school bus air-conditioning drying bottle Receiver Drier can absorb the moisture in the air-conditioning system, dry its operating environment, and avoid water, ice or dirty blockages in the air-conditioning refrigeration system.



Bus HVAC DML305 FS Danfoss Hermetic Filter Dryer 023Z0264 Main Features

1.Filtering and high precision
2.Service life is long
3.Excellent Packing .
4.Good Appearance
5.Reliable quality and favorable price

The Core type Danfoss DML 305 FS
100% Molecular Sieve core
High drying capacity minimizing the risk of acid formation (hydrolysis)
Recommended for use with R134a, R404A, R32,R410A, R407C, R23, R600, R600a,R1234yf, R1234ze, R407f, R290, R452A,R444B, R449A, R448A and R450A refrigerants
Will not deplete oil additives

The Core type Danfoss DCL 305 FS
80% Molecular Sieve with 20% activated alumina
Perfect core blend for systems that operate at high condensing temperatures and require high drying capacity
Recommended for use with Applicable to R22, R134a, R404A, R32,R410A, R407C, R23, R600, R600a,R1234yf, R1234ze, R407f, R290, R452A,R444B, R449A, R448A and R450A refrigerants

The Shell of Danfoss DCL/DML 305 FS
PED approved for PS 46 bar
Available with solder (Cu-plated steel connectors) and flare connections
Corrosion resistant powder-painted finish. Special coating for marine applications available upon request.
Allows installation with any orientation provided the arrow is in the flow direction
Available in sizes 3 – 75 cubic inches

The Filter of Danfoss DCL/DML 305 FS
25 μm (0.001 in.) filter provides high retention with minimal pressure drop
Thermally stable up to 120 °C


There are two types of Hermetic Filter Drier cores of Danfoss DCL / DML 305FS Hermetic Filter Driers

Danfoss DCL / DML 305FS driers have a solid core with binding material held to an absolute minimum. There are two types of Hermetic Filter Drier cores. Type DML 163 driers have a core composition of 100% Molecular Sieve, they are designed for applications requiring the highest moisture capacity. While type DCL 163 contain 80% Molecular Sieve with 20% activated alumina, they are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections. For other connections please contact your Danfoss Sales Representative to info@vehicleacparts.com



Bus Air Conditioner Parts Danfoss DCL / DML 305 FS Receiver Drier Supplier - VehicleACParts

VehicleACParts is a professional supplier in yutong bus air conditioner parts, we can offer all parts such as Bitzer compressor, Bock compressor, Denso compressor, Thermoking compressor, as well as bus compressor Electromagnetic Clutch,  bus shaft seal, Condenser fan, Blower fan and motor, Receiver drier, bus a/c control panel, Danfoss expansion valves etc.

Gross weight	1.64 kg
Net weight	1.41 kg



Acid capacity [g]	2.43 g
Acid capacity [oz]	0.086 oz
Activated alum/Molec sieve [%]	0% / 100%
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
Category	Art. 3, par. 3
Connection material	Steel
Core	Solid core
Core Size code	30 cu.in.
Drying Cap[Drops of Water]24°C	R134a: 1127 R290: -- R32: 948 R404A: 1174 R407C: 1094 R410A: 1020 R507: 1229
Drying Cap[Drops of Water]52°C	R134a: 1032 R290: -- R32: 873 R404A: 1112 R407C: 1009 R410A: 907 R507: 1106
Flow capacity [kW]	R290: -- R134a: 45.4 R32: 69.3 R404A: 32.0 R407C: 46.6 R410A: 47.3 R507: 31.0
Flow capacity [TR]	R134a: 12.9 R290: -- R32: 19.7 R404A: 9.1 R407C: 13.2 R410A: 13.4 R507: 8.8
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	5/8 in
Inlet connection type	FACE SEAL
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Net volume [foz US]	15.68 oz
Net volume [l]	0.464 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A

Outlet 1 connection size [in]	5/8 in
Outlet connection type	FACE SEAL
Packing format	Multi pack
Product accessories	No
Product description	Liquid line filter drier
Product group	Filter driers
Product name	Hermetic filter drier
Quantity per packing format	8 pc
Refrigerant oil compatibility	Oilfree applications R1234ze(E) R134a R513A R515A
Refrigerants	R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) R1233zd(E) R407H R454A R454C R463A R515B R516A
Serviceable	No
Shell volume [foz US]	24.42 oz
Shell volume [l]	0.72 L
Solid core surface [cm2]	340 cm²
Solid core surface [in2]	52.7 in²
Solid core volume [cm3]	258 cm³
Solid core volume [in3]	15.77 in³
Specification key	DML 305FS
Temperature range [°C] [Max]	70 °C
Temperature range [°C] [Min]	-40 °C
Temperature range [°F] [Max]	160 °F
Temperature range [°F] [Min]	-40 °F
Type	DML
Type designation	DML 305FS
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
