Home > Products > Bus HVAC Parts > Receiver Drier > Danfoss

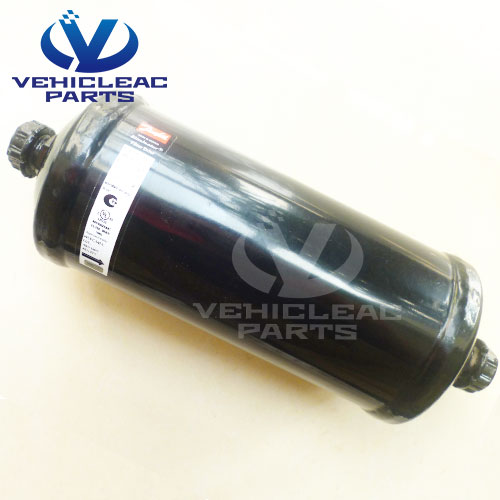

DML303 FS Danfoss Filter Dryer 023Z3247

Model:

DML303 FS 023Z3247

Part Number:

1006-4309

OE:

Danfoss: DML303FS 023Z3247; Thermo king: TK66-8344; Carrier: 24-06010-53; Eberspacher:24.06.01.053.00 ; Autoclima: 60652173;

Description

DML303 FS Danfoss Hermetic Filter Dryer 023Z3247

SEND INQUIRY

chat now

send email

Bus Air Conditioner Receiver Drier Suppliers, Bus clima drying bottle DML303 FS Danfoss Filter Dryer 023Z3247 original

Bus air conditioner drying bottle, bus clima Receiver Drier DML303 FS Danfoss Filter Dryer 023Z3247

Bus clima Receiver Drier Suppliers, DML303 FS Danfoss Filter Dryer 023Z3247

Filter Dryer Technical Parameter Video Related Products Inquiry

DML303 FS Danfoss Hermetic Filter Dryer 023Z3247 - Bus A/C Parts

Bus air conditioner spare parts Receiver Drier DML303 FS Danfoss Hermetic Filter Dryer 023Z3247 is one key parts of Bus air conditioning system, Receiver Drier which is mainly used for storing refrigerant, filtering impurities and drying the bus HVAC, truck refrigeration units environment in the whole vehicle refrigeration system.

Detail Introduction of DML303 FS Danfoss Filter Dryer Bus Clima Drying Bottle / Receiver Drier 023Z3247

Product name: Bus A/C Parts DML303FS Danfoss Hermetic Filter Dryer
Warranty: 1 year
Place of Origin: ShangHai, China (Mainland)
Brand Name: VehicleACParts
Item name: Bus Air Conditioner Receiver Drier Filter
Type: Filter Drier, welding gas fitting
Danfoss OEM: 023Z3247
Uses: Oil and water separation
Drive mode: Freestanding
Control mode: Bus HVAC Automatic adjustment
Filter Type: Inside is Ceramsite Tube
Principle: Adsorption method
Industry: Auto Bus HVAC parts, Truck Refrigeration Units Filter Dryer
Color: Black
Applied refrigerant: R134A, R404A, R407C, R410A, R507C
Other name: filter drier, Freon Filter, dehydrator, Receiver drier
Dimensions: 75 mm x 240 mm
Material: Molecular sieve

Bus Air Conditioner DML303 FS Danfoss Hermetic Filter Receiver Dryer 023Z3247 Application :

Big bus Air Conditioner Receiver Drier, Van Air Conditioner Receiver Drier, School Bus Air Conditioner Receiver Drier, Citybus Air Conditioner Receiver Drier, Yutong Bus A/C Receiver Drier etc.
Car Model: Big Bus Air Conditioner, Van air conditioning, Kinglong Bus Air con, Yutong Bus A/C etc.

DML303 FS Danfoss Filter Dryer 023Z3247 used for Truck Refrigeration Units:

DML 303FS Filter Drier 023Z3247 application for Carrier Truck Refrigeration Unit:
Zephyr 200 / Zephyr200
Zephyr 300 / Zephyr300
Xarios 500 / Xarios500
Xarios 600 / Xarios600
Xarios 600 Mt / Xarios600Mt
Mistral TE 850 PLUS / MistralTE850PLUS
Supra 450 / Supra450
Supra 522 / Supra522(also with Flare)
Supra 544 / Supra544(also with Flare)
Supra 550 / Supra550
Supra 722 / Supra722
Supra 744 / Supra744
Supra 750 / Supra750
Supra 750 Mt / Supra750Mt
Supra 750 SW / Supra750SW
Supra 822 / Supra822
Supra 850 Mt / Supra850Mt
Supra 850 / Supra850
Supra 850 U / Supra850U
Supra 950 Mt / Supra950Mt
Supra 950 U / Supra950U
Supra 950U Mt / Supra950UMt
Genesis B50 / GenesisB50
Genesis B70 / GenesisB70
Genesis B80 / GenesisB80
Genesis R70 / GenesisR70

DML 303FS Filter Drier 023Z3247 Used for Thermo King Truck Refrigeration Unit:
VM-400 / VM400
VM-300 / VM300
VM-405 / VM405
V-500 / V500
V-520 / V520

DML 303FS Filter Drier 023Z3247 Fits Zanotti Refrigeration Truck Unit
UNO80
UNO100
FZ258
DFZ425
DFZ430
DFZ465
UN0°100
UN0°80

Bus A/C Parts DML303 FS Danfoss Hermetic Dehydrator Filter Receiver Dryer 023Z3247 OEM Number:

Carrier Receiver Drier
14-00326-00, 140032600, 14-0032600
14-00326-03, 140032603, 14-0032603
14-60018-00, 146001800, 14-6001800
14-60018-03, 146001803, 14-6001803

Thermo King Dehydrator Drier
66-8471, 668471, 668-471, TK668471
FG303, FG 303, FG 303 ORS, 023Z3247
1B19684H03 / D0710

Danfoss Freon Filter
DCL 303 FS
DML 303 FS

Autoclima Freon Filter Drier
60652174
COD 60652174

Zanotti Filter Drier
3FLT176
3FLT095

Sutrak Receiver Filter Drier
8850120001900

3100079

Packaging & Delivery of Bus A/C Parts DML303FS Danfoss Hermetic Filter Dryer 023Z3247

Packaging Details
Single packed of Danfoss Hermetic Filter Dryer DML303FS 023Z3247, One piece per box. 10 boxes per carton box.Customers' detailed package requirements are available.
Port: Qingdao , Lianyungang , Shanghai, Ningbo,
Lead Time :15-20 working days after confirmed the order

Bus HVAC DML303 FS Danfoss Hermetic Filter Dryer 023Z3247 Main Features

1.Filtering and high precision
2.Service life is long
3.Excellent Packing .
4.Good Appearance
5.Reliable quality and favorable price

The Core type Danfoss DML 303 FS
100% Molecular Sieve core
High drying capacity minimizing the risk of acid formation (hydrolysis)
Recommended for use with R134a, R404A, R32,R410A, R407C, R23, R600, R600a,R1234yf, R1234ze, R407f, R290, R452A,R444B, R449A, R448A and R450A refrigerants
Will not deplete oil additives

The Core type Danfoss DCL 303 FS
80% Molecular Sieve with 20% activated alumina
Perfect core blend for systems that operate at high condensing temperatures and require high drying capacity
Recommended for use with Applicable to R22, R134a, R404A, R32,R410A, R407C, R23, R600, R600a,R1234yf, R1234ze, R407f, R290, R452A,R444B, R449A, R448A and R450A refrigerants

The Shell of Danfoss DCL/DML 303 FS
PED approved for PS 46 bar
Available with solder (Cu-plated steel connectors) and flare connections
Corrosion resistant powder-painted finish. Special coating for marine applications available upon request.
Allows installation with any orientation provided the arrow is in the flow direction
Available in sizes 3 – 75 cubic inches

The Filter of Danfoss DCL/DML 303 FS
25 μm (0.001 in.) filter provides high retention with minimal pressure drop
Thermally stable up to 120 °C

There are two types of Hermetic Filter Drier cores of Danfoss DCL / DML 303FS Hermetic Filter Driers

Danfoss DCL / DML 303FS driers have a solid core with binding material held to an absolute minimum. There are two types of Hermetic Filter Drier cores. Type DML 303 driers have a core composition of 100% Molecular Sieve, they are designed for applications requiring the highest moisture capacity. While type DCL 303 contain 80% Molecular Sieve with 20% activated alumina, they are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections. For other connections please contact your Danfoss Sales Representative to info@vehicleacparts.com

Bus Air Conditioner Parts Danfoss DCL / DML 303 FS Receiver Drier Supplier - VehicleACParts

VehicleACParts is a professional supplier in yutong bus air conditioner parts, we can offer all parts such as Bitzer compressor, Bock compressor, Denso compressor, Thermoking compressor, as well as bus compressor Electromagnetic Clutch, bus shaft seal, Condenser fan, Blower fan and motor, Receiver drier, bus a/c control panel, Danfoss expansion valves etc.

Technical Parameter

Gross weight	1.41 kg
Net weight	1.32 kg

Acid capacity [g]	2.43 g
Acid capacity [oz]	0.086 oz
Activated alum/Molec sieve [%]	0% / 100%
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
Category	Art. 3, par. 3
Connection material	Steel
Core	Solid core
Core Size code	30 cu.in.
Drying Cap[Drops of Water]24°C	R134a: 1127 R290: -- R32: 948 R404A: 1174 R407C: 1094 R410A: 1020 R507: 1229
Drying Cap[Drops of Water]52°C	R134a: 1032 R290: -- R32: 873 R404A: 1112 R407C: 1009 R410A: 907 R507: 1106
Flow capacity [kW]	R290: -- R134a: 19.3 R32: 29.5 R404A: 13.6 R407C: 19.8 R410A: 20.1 R507: 13.2
Flow capacity [TR]	R134a: 5.5 R290: -- R32: 8.4 R404A: 3.9 R407C: 5.6 R410A: 5.7 R507: 3.8
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	3/8 in
Inlet connection type	FACE SEAL
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Net volume [foz US]	15.68 oz
Net volume [l]	0.464 L

Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet 1 connection size [in]	3/8 in
Outlet connection type	FACE SEAL
Packing format	Industrial pack
Product description	Liquid line filter drier
Product group	Filter driers
Product name	Hermetic filter drier
Quantity per packing format	8 pc
Refrigerant oil compatibility	Oilfree applications R1234ze(E) R134a R513A R515A
Refrigerants	R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) R1233zd(E) R407H R454A R454C R463A R515B R516A
Serviceable	No
Shell volume [foz US]	24.42 oz
Shell volume [l]	0.72 L
Solid core surface [cm2]	340 cm²
Solid core surface [in2]	52.7 in²
Solid core volume [cm3]	258 cm³
Solid core volume [in3]	15.77 in³
Specification key	DML 303FS
Temperature range [°C] [Max]	70 °C
Temperature range [°C] [Min]	-40 °C
Temperature range [°F] [Max]	160 °F
Temperature range [°F] [Min]	-40 °F
Type	DML
Type designation	DML 303FS
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A

Technical Parameter of DML303 FS Danfoss Hermetic Filter Dryer Sae Flare Outlet Connection 023Z3247
