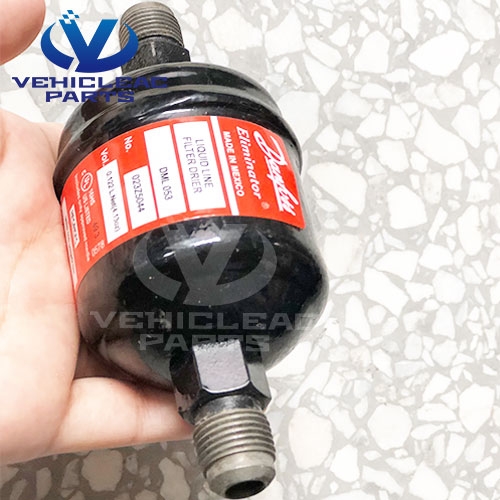

DML053 Danfoss Hermetic Filter Dryer 023Z5044
Filter dryer Vehicle Clima filter type 305 (7/8"UNF/ 5/8" inch) flare connection Bus clima Receiver Drier DML053 Danfoss Hermetic Filter Dryer 023Z5044 is one parts of Bus air conditioner Receiver Drier which is mainly used for storing refrigerant, filtering impurities and drying the bus HVAC, truck refrigeration units environment in the whole vehicle refrigeration system. Danfoss Liquid Line Filter Drier Dcl 053 3/8 in. Flare 1.5-2.5 tons Unidirectional 5-3/16 in. Long 2-1/4 in. Wide 023z5003, which the Solid Bronze Inlet And Outlet Flare Connections. Max Temperature 160 F (70C) Min Temperature -40F (-40C), Universal used for Simple Drop-In Replacements For Most Dirers Installed In Refrigeration, Air Conditioning And Heat Pump Units
Detail Introduction of DML053 Danfoss Filter Dryer Bus Clima Drying Bottle / Receiver Drier 023Z5044
Product name: Bus A/C Parts DML053 Danfoss Hermetic Filter Dryer
Warranty: 1 year
Place of Origin: ShangHai, China (Mainland)
Brand Name: VehicleACParts
Item name: Bus Air Conditioner Receiver Drier Filter
Type: Filter Drier, welding gas fitting
Industry: auto parts
Danfoss OEM: 023Z5044
Uses: Oil and water separation
Drive mode: Freestanding
Control mode: Bus HVAC Automatic adjustment
Filter Type: Inside is Ceramsite Tube
Principle: Adsorption method
Industry: auto Bus HVAC parts
Color: Black
Weight : 0.6 LBR
Applied refrigerant: Works With Most Refrigerants Including R1234Yf, R134A, R290, R22, R407C, R404A, R507A, R600 And Many More
Other name: filter drier, Freon Filter, dehydrator, Receiver drier
Dimensions: 54 mm x 130 mm
Material: Molecular sieve
Overall length: 132 mm
filter diameter: 54 mm
Output diameter: 25 mm
- temperature range: -40 - 70 °C / -40 - 160 °F
- Outlet connection for size: 5/8" 18UNF - 2A / G6
- Connection material: Steel
- Connection size inlet: 5/8" 18UNF - 2A / G6
- Inlet Connection Type: flare
- maximum working pressure: 46,0 bar
Bus Air Conditioner DML053 Danfoss Hermetic Filter Receiver Dryer 023Z5044 Application :
Big bus Air Conditioner Receiver Drier, Van Air Conditioner Receiver Drier, School Bus Air Conditioner Receiver Drier, Citybus Air Conditioner Receiver Drier, Yutong Bus A/C Receiver Drier etc.
Car Model: Big Bus Air Conditioner, Van air conditioning, Kinglong Bus Air con, Yutong Bus A/C etc.
DML053 Danfoss Filter Dryer 023Z5044 used for Truck Refrigeration Units:
/
DML / DCL 053 Filter Drier for Thermo king Truck Refrigeration Unit:
/
DML / DCL 053 Filter Drier Fits Zanotti Refrigeration Truck Unit
/
DML / DCL 053 Danfoss Filter Dryer 023Z5044 used for Bus Air Conditioner:
/
DML / DCL 053 Filter Drier for Carrier Sutrak Bus air conditioner
DML / DCL 053 Danfoss Hermetic Dehydrator Filter Receiver Dryer 023Z5044 Catalog OEM Number:
Autoclima Receiver filter drier
60652549
COD 60652549
Danfoss Receiver Dryer
DML 053
DCL 053
023Z5044
023Z5038
DCL 053 023Z5044
Dryl053,
Adk053,
H053,
Sd-053,
053,
C-053,
Wah053,
16174,
Apfd-053
HS CODE 8415901000
Packaging & Delivery of Bus A/C Parts DML / DCL 053 Danfoss Filter Dryer 023Z5044
Packaging Details
Single packed.One piece per box.10 boxes per carton.Customers' detailed package requirements are available.
Port: Qingdao , Lianyungang , Shanghai, Ningbo,
Lead Time :15-20 days after confirmed
The Role of DML / DCL 053 Danfoss Hermetic Filter Dryer In Bus Air Conditioner
There are three main functions of the Bus air conditioner Receiver Drier, including storing refrigerant, filtering impurities and drying the bus HVAC environment, the details are as follows:
1. Storage refrigerant:
The bus air-conditioning drying bottle / Receiver Drier stores the refrigerant required for the air-conditioning work, and the refrigerant can be mobilized in time to assist its work when the bus air-conditioning system is working. The harder the air conditioning system works, the more refrigerant it needs.
2. Filter impurities:
The citybus air-conditioning drying bottle / Receiver Drier can filter out the impurities generated in the bus car pipeline and the air-conditioning compressor, so as to avoid the normal operation of the car air-conditioning system due to the blockage of impurities.
3. Dry bus HVAC environment:
The school bus air-conditioning drying bottle Receiver Drier can absorb the moisture in the air-conditioning system, dry its operating environment, and avoid water, ice or dirty blockages in the air-conditioning refrigeration system.
Bus HVAC DML / DCL 053 Danfoss Hermetic Filter Dryer 023Z5044 Main Features
1.Filtering and high precision
2.Service life is long
3.Excellent Packing .
4.Good Appearance
5.Reliable quality and favorable price
The Core type Danfoss DML 053
100% Molecular Sieve core
High drying capacity minimizing the risk of acid formation (hydrolysis)
Recommended for use with R134a, R404A, R32,R410A, R407C, R23, R600, R600a,R1234yf, R1234ze, R407f, R290, R452A,R444B, R449A, R448A and R450A refrigerants
Will not deplete oil additives
The Core type Danfoss DCL 053
80% Molecular Sieve with 20% activated alumina
Perfect core blend for systems that operate at high condensing temperatures and require high drying capacity
Recommended for use with Applicable to R22, R134a, R404A, R32,R410A, R407C, R23, R600, R600a,R1234yf, R1234ze, R407f, R290, R452A,R444B, R449A, R448A and R450A refrigerants
The Shell of Danfoss DCL/DML 053
PED approved for PS 46 bar
Available with solder (Cu-plated steel connectors) and flare connections
Corrosion resistant powder-painted finish. Special coating for marine applications available upon request.
Allows installation with any orientation provided the arrow is in the flow direction
Available in sizes 3 – 75 cubic inches
The Filter of Danfoss DCL/DML 053
25 μm (0.001 in.) filter provides high retention with minimal pressure drop
Thermally stable up to 120 °C
There are two types of Hermetic Filter Drier cores of Danfoss DCL / DML 053 Hermetic Filter Driers
Danfoss DCL / DML 305FS driers have a solid core with binding material held to an absolute minimum. There are two types of Hermetic Filter Drier cores. Type DML 163 driers have a core composition of 100% Molecular Sieve, they are designed for applications requiring the highest moisture capacity. While type DCL 163 contain 80% Molecular Sieve with 20% activated alumina, they are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections. For other connections please contact your Danfoss Sales Representative to info@vehicleacparts.com
