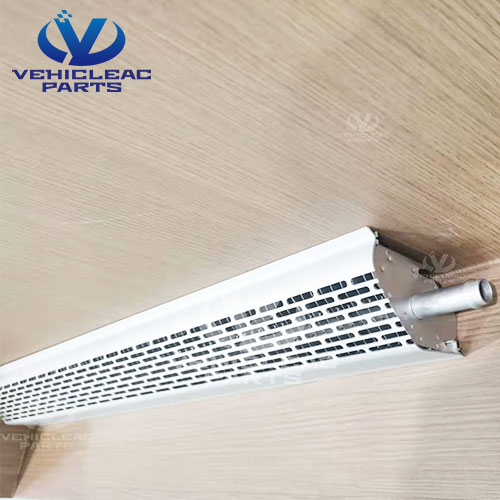

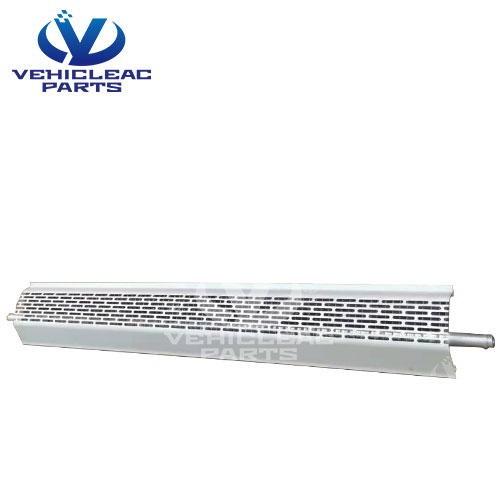

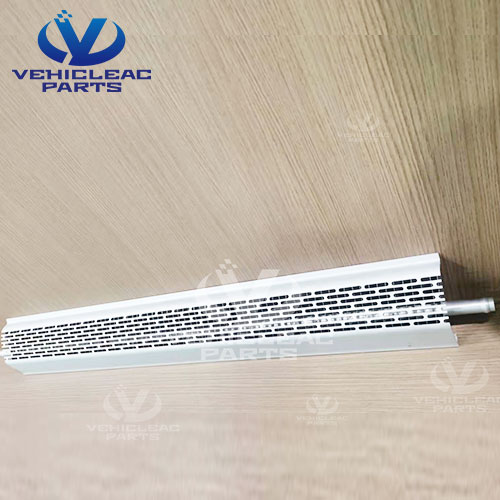

Bus Natural Wind Wall Mount Convector Radiator Heater

Bus Natural Wind Wall Mount Convector radiator Heater is constituted by water tube, heat dissipation core, with higher safety and stronger reliability;  single water inlet, Ф18, Ф22 customized


Natural Wind Radiator Convector Heaters for Bus Vehicle Introduction

Model: 450-53002
Heating (Thermal ) power (KW): 0.7KW/m (can be customized)

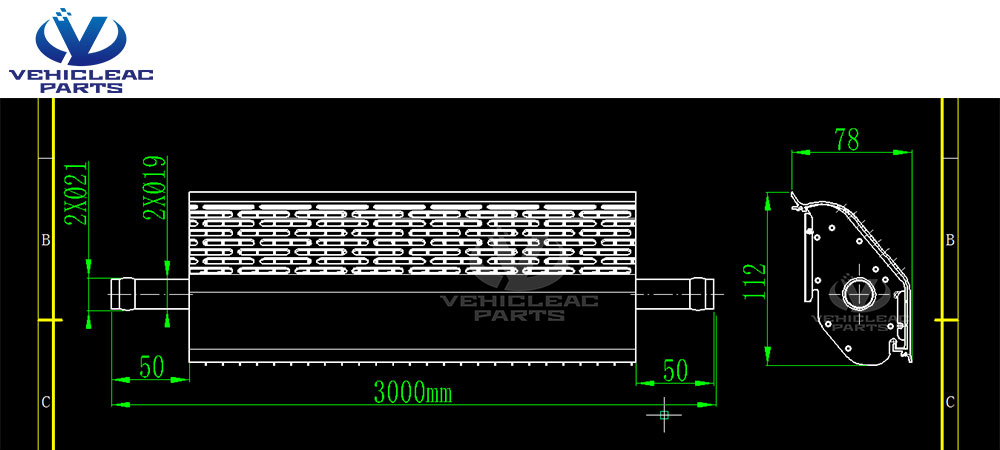

Dimensions (MM):  (customizable)
Type: Natural Wind Convector Bus Radiator (Without Fan)
Application: Bue Vehicle, Citybus, Coach Vehicle, etc.
Partner: BYD,GEELY, Yutong, KingLong
Features: Customizable
Installation: Wall Radiator Installation



Bus Wall Mount Convector Radiator Heater Technical Requirements

1. There are no obvious scratches on the surface of the heat sink cover
2. The inlet and outlet pipes are Φ22 copper pipes (aluminum pipes can also be used)
3. Pressure resistance 0.2Mpa, no leakage for 1 minute
4. Protect the grille with film
5. The heat release is 0.7KW/m, and the length can be customized with the vehicle
6. Customizable Bus Wall Mount Convector Radiator Heater



Bus Wall Mount Natural Wind Radiator Convector Heater Feature:

☆  Axial and radial sidewall bus convector heater, adopts natural convection heat dissipation, uniform heat dissipation
☆  Natural heat sink has no noise, lightweight design
☆  The natural wind bus radiator has a compact structure and a generous and beautiful appearance.
☆  The size of the natural radiator can be customized according to the layout, reducing the connection points, easy installation and maintenance
☆  Natural radiator surface anodized treatment, corrosion resistance, long life



Bus Wall Mount Natural Wind Radiator Convector Application:

The Bus Wall Mount Natural Wind Radiator Convector is for all bus vehicle, such as YUTONG bus, GEELY citybus, BYD coach & buses, Kinglong Bus, etc.



How to Use Bus Wall Mount Natural Wind Radiator Convector Heater

Bus Wall Mount Natural Wind Radiator Convector heater mianly used to install the side wall of inside bus compartment, used for heating the bus inside peple. It is cost effective and easy to install, quickly realize the citybus heating function, contact info@vehicleacparts.com the Bus Wall Mount Natural Wind Radiator Convector Heater will be Your Best and Wisest Choice

Model	450-53002
Voltage
Thermal Power	0.7KW/m
Type	Natural Convector (Without Fan)
Dimension	Customized (as per customer)
Installation	Wall Radiator
Application	RV, Coach, Bus, Yacht, etc
Partner	Yutong, BYD, KingLong, Mercedes Bus
