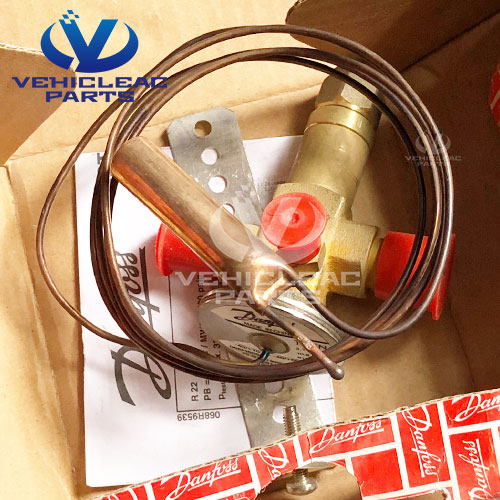

068H8665 Thermal Expansion Valve for Yutong Bus Air Con
Expansion valve is an important component of the bus air conditioning and refrigeration system, and the Thermostatic expansion valves generally used to regulate the injection of R134a refrigerant liquid into bus air conditioner evaporators, can be used for refrigeration and bus air conditioning in a wide range of temperature adjustment, generally installed between the cartridge and the evaporator. 068H8665 Danfoss Thermostatic expansion valve is mainly used for bus air conditioning system
Yutong Bus Air Conditioner Thermostatic Expansive Valve 068H8665 Features & Advatage
Constant superheat adjusting performance.
Evaporating temperature range: -40/+10℃ / -40/+50℉
With MOP (Max. operating pressure) function: PS 46 Bar / MWP 667 psig
Inlet filter net is changeable
Suitable Refrigerant Gas:R12, R22, R134a, R407c, R404A, R410, R502, R507.
Thermal Expansion Valve for Bus Air Conditioner 068H8665 Detail Introduction
OE NO.:068H8665 expansion valve
Place of Origin:China (Mainland)
Brand Name: Danfoss
Model: 068H8665 Thermal expansion valve
OEM CODE number: 068H8665
Orif no.20
Orifice capacities [TR]: 3.10,
Orifice capacities [kW]: 10.80,
Mouth: OR mouth
Application: Vehicle Refrigerator, bus air conditioner expansive valve
3/8 in*1/2 in Mio
Car Make: bus air conditioner expansion valve, citybus air conditioner expansive valve,double decker bus air conditioner expansion valve
Connection form: Welding / Solder
Refrigerant: R134a
Material: Brass
Connector Type: SAE / ODF
Pressure environment: High Pressure
Operating temperature: High Temperature
Standard: International Standard
Flow direction: One-way
Temperature range [°C]: -40 - 10,
Pressure equalization: Externally equalized
Packaging & Delivery of Bus Air Conditioner Parts Thermostatic Expansion Valve 3.1TR 10.8KW, R134a 068H8665
Selling Units: Single item
Single gross weight: 0.8 KG
Package Type: Carton box packing.
Port: Guangzhou, Shanghai, Shenzhen, Hongkong
Lead Time : 7~10 working day after payment
Bus Air Conditioner Thermal Expansive Valve Effect and Working Principle
1. Throttling effect of expansion valve: high temperature and pressure liquid 134 refrigerant throttling through the expansion valve throttling, a low temperature and low pressure of the mist of the hydraulic refrigerant to create conditions for the bus air conditioner evaporation of refrigerant;
2. Control the flow of R134 refrigerant: Once the liquid refrigerant into the evaporator of bus air conditioning system, the refrigerant will be evaporated into a gaseous state, absorbing heat, reducing the temperature inside the bus.
Expansion valve control the flow of refrigerant to ensure that the bus air conditioner evaporator outlet is completely gaseous refrigerant, if the flow is too large, the outlet contains liquid refrigerant may enter the compressor to produce liquid hit; If the refrigerant flow is too small, premature evaporation is completed, resulting in lack of refrigeration
