EC dual centrifugal evaporator blower, brushless DC motor EBM-Papst K3G097-AK34-65
EC dual centrifugal blower with brushless DC motor EBM-Papst K3G097-AK34-65 Introduction
DC24V, Max. Airflow 1290 m3/h, Current Input 15.2A; EC dual centrifugal blowers, with brushless DC motor, φ 097
Material of dual centrifugal brushless DC motor EBM-Papst K3G097-AK34-65 evaporator blower :
Housing: PP plastic, coloured black (conforms to UL 94 HB)
Impeller: PA plastic
EBM-Papst Brushless K3G097-AK34-65 Evaporator Blower for Carrier Sutrak (Eberspacher) Bus Air Conditioner
Operating supply voltage - 24 VDC
Noise - 72 DBA
Speed - 3830 RPM
Fine power - 394 W

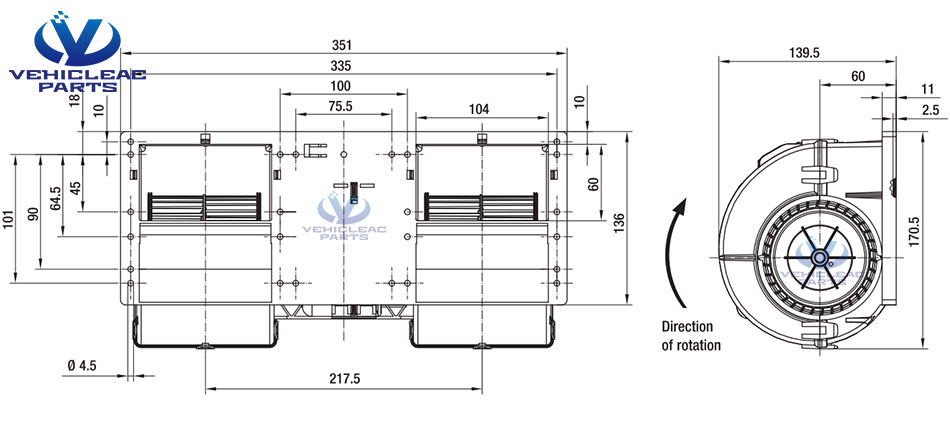

Height - 171 mm
Depth - 140 mm
Width - 351 mm
Packaging material - plastic
Type of protection: IP 24 KM(without plug)
-Insulation class: "B"in accordance with EN 60335-1
Mounting position: Any
Mode of operation: Continuous operation (S1)
Bearings: Maintenance-free ball bearings on both sides
Motor Protection of EBM K3G097-AK34-65 24V Brushless Evaporator Blower:
Overtemperature protection,
locked-rotor protection,
load dump protection,
under-voltage detection
EBM-Papst K3G097-AK34-65, 24V brushless Evaporator Blower of Bus A/C Parts OEM NO.
EBM-Papst Evaporator Blower
EBM K3G097-AK34-66
EBM K3G097-AK34-65
Autoclima:
20220308
COD 20220308
Carrier Sutrak 24V (Eberspacher) Evaporator Blower
P/N 54-00627-02, 540062702
P/N 28,20,01,061-00 , 28200106100, 282001061
P/N 28,20,01,063-00 , 28200106300, 282001063
P/N 88-64-01-00004-00, 8864010000400,
P/N 88-50-57-00004-00, 8850570000400
