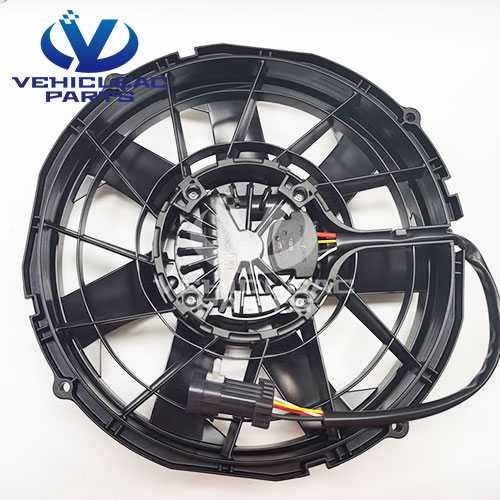

Spal Brushless Axial Fan VA89-BBL342P/N-94A

SPAL Brushless Axial Fan VA89-BBL342P/N-94A 24V Bus Radiator Cooling Fan Introduction

High efficiency, compact construction and superb reliability are the core requirements for modern bus condensor fan. Bus A/C Parts VA89-BBL342P/N-94A brushless axial fan for bus/truck/construction vehicle radiator cooling has a longer service time and warranty period, it is mainly design for various bus engine water tank radiator cooling, and widely used in Chinese Yutong citybus air conditioning system for Vehicle Water Tank Cooling, VA89BBL342PN94A 24V Axial Fan Cooling Fan is your best choose for vehicle Water Tank Cooling air conditioner such as bus, rv, van, coach buses, citybus, school bus, and so on.

Bus Engine Cooling Electronic fan VA89-BBL342P/N-94A, 305mm, 24V, 3674 Air Flow, is made of plastic material with light weight, which can effectively improve the operating efficiency, this one is universal radiator cooling fan, max air flow 3674m3/h. Spal cooling air fans are suitable for use in motorsport applications as well as high performance replacement units for large and medium-sized passenger road vehicle and kit cars such as bus, school bus, coatch, RV, citybus, travel bus.



Quick Details of  Bus Radiator Cooling Brushless Axial Flow Fan SPAL VA89-BBL342P/N-94A 24V

Model: Spal Brushless VA89-BBL342P/N-94A
RPM: 800 ~ 3400 RPM
Max. thickness: 112,1mm
Blades diameter: 305mm, 12.0"
max air flow: 3674 m3/h
Number of blades: 7
Blades type: bent
Power supply : 24V
Input:  15,4 - 16,7A
Type: Axial Flow Fan
Customized support： OEM
Electric Current Type： DC
Mounting： FREE STANDING
Blade Material： Plastic
Place of Origin： China
Brand Name： Spal
Model Number： VA89-BBL342P/N-94A
Voltage： 24V
Warranty： 1 Year
After-sales Service Provided: Online support
IP Rating： IP68
Product Name: Bus engine water tank radiator fan
Type: Original bus dedicated high power fan assembly
Weight: 3,5kg
Applicable Industries: cooling radiators and coils, agricultural machinery, off-road, refrigeration equipment, ventilation in 24 volt vehicles, universal use.



Spal VA89-BBL342P/N-94A Bus Vehicle Water Tank Radiator Cooling Axial Fan Feature:

Low Power Consumption; Super Long Service Life; Maintenance-free; Environment-friendly; Short Circuit Protection; Over-current Protection; Over-temperature Protection; Over-voltage Protection; Under-voltage Protection; Locked-rotor protection.
High Performance Cooling Axial Fans
Waterproof Long Life Motors
Suitable For Motorsport Or Various Road Cars, such as bus & coatch cooling system
Universal Fitting



SPAL Brushless Axial Fan Mounting VA89-BBL342P/N-94A 24V

SPAL Brushless fans with diameters 255mm, 280mm, 305mm, 405mm are designed with an “A” suction blade optimized to give the best efficiency in one direction only, you can obtain both airflow directions out of the same fan simply by mounting the fan upside down.
SPAL recommend mounting a Brushless Fan within a cowling in order to cool the entire surface of the radiator/cooler and obtain the maximum efficiency available.



Bus Brushless Cooling Axial Fan Specification Classification:

12V 260W suction VA89-BBL342P/N-94A
24V 260W suction VA89-BBL342P/N-94A



Supply Ability of Bus Cooling Axial Fan SPAL VA89-BBL342P/N-94A Bus A/C Parts

Supply Ability:
30000 Piece/Pieces per Month



Packaging & Delivery of Bus Radiator Cooling Axial Fan SPAL Brushless VA89-BBL342P/N-94A

Packaging Details
Neutral package/Color package
Port: Shangai/ Ningbo
Lead Time: Shipped in 10 working days after payment



SPAL VA89-BBL342P/N-94A Bus Engine Water Tank Radiator Cooling Fan, Bus A/C Parts Supplier - VehicleACParts

VehicleACParts mainly supply bus condensor fan, bus cooling fan, Bus Cooling Axial Condenser Fan, Vehicle Water Tank Cooling fan, this bus vehicle cooling fan VA89BBL342PN94A that our business deal widely used on Eiropean, American, Japanese, Korean, Chinese buses and trucks! Our water pump have good quality and competitive price!!!

The Axial Flow bus air conditioner water tank cooling fan VA89-BBL342P/N-94A is for all kind of bus vehicle brand, such as Mercedes bus, Scania bus, Man buses, Volvo middel bus, Jelcz small bus, Autosan school bus, Solaris city bus, Neoplan minibus, YUTONG bus, GEELY citybus, BYD coach & buses. This bus engine water tank radiator fan adopts Italian imported brush and has a service life of no less than 9000 hours. It has been supporting services with many manufacturers for many years, with an annual output of over 30,000 units, providing one year of free after-sales quality assurance.

Specification	Metric	Imperial & Other
Airflow Max	3674 m3/hr	2162 cfm
Weight	2.2 kg	4.85 lbs
Blade Diameter	∅ 305mm	∅ 12"
Housing Diameter	∅ 332mm	∅ 13.07"
Housing Depth	76.65mm	3.02"
Speed Derating Threshold	65 °C	149 °F
Operational Fan Speed	800 - 4100rpm
Voltage	24v
Operating Supply Voltage Range	16 - 32v
Supply Voltage To Reach Max Speed	26 - 32v
Current Continuous	18.8 - 23.5a
Power Consumption	451.2 - 564w
Time From 0 To Full Speed	16 seconds
Motor Type	Brushless (up to 40,000 hrs)
Protection	IP6K9K and IP68 Certified
Warranty	36 Months
Manufacturer	SPAL Automotive
Certifications	UNI EN ISO 9001:2008, ISO TS 16949, ISO 14001
SPAL Type Number	VA89-BBL342P/N-94A
SPAL Part Number	30107105
