Spal Condenser Axial Fan VA01-BP70/VLL-79S

Model:
SPAL Bus Condneser Fan
Part Number:
4305-1002
OE:
Spal: VA01-BP70/VLL-79S; Spal: VA01BP70VLL79S; Yutong: 8114-00019;
Description
Spal VA01-BP70/VLL-79S 24V, 273W, Air flow: 2850 m3/h, 305mm, 12.0", Axial Flow fan for bus air conditioner condenser cooling system, Original
bus air conditioner parts SPAL Axial Flow Fan VA01-BP70/VLL-79S for Bus Cooling Fan, yutong 8114-00019
bus cooling parts fan SPAL VA01-BP70/VLL-79S Axial Flow FAN For bus Cooling Fan, yutong 8114-00019
school Bus axial fan SPAL VA01-BP70/VLL-79S For vehicle Citybus Condenser Fan, yutong 8114-00019
Bus Cooling Spal Axial Condenser Fan VA01-BP70/VLL-79S

SPAL Axial Fan VA01-BP70/VLL-79S 24V Bus Cooling Fan Introduction

High efficiency, compact construction and superb reliability are the core requirements for modern bus condensor fan. Bus A/C Parts VA01-BP70/LL-66A, VA01-BP70/VLL-79S brushed axial fan for bus/truck/construction vehicle radiator cooling has a longer service time and warranty period, it is mainly design for various bus engine water tank radiator cooling, and widely used in Chinese Yutong citybus air conditioning system for Vehicle Water Tank Cooling, VA01BP70VLL79S 24V Axial Fan Cooling Fan is your best choose for vehicle Water Tank Cooling air conditioner such as bus, rv, van, coach buses, citybus, school bus, and so on.

Bus Engine Cooling Electronic fan VA01-BP70/VLL-79S, 305mm, 24V, 2850 Air Flow, is made of plastic material with light weight, which can effectively improve the operating efficiency, this one is universal radiator cooling fan, max air flow 2850m3/h. Spal cooling air fans are suitable for use in motorsport applications as well as high performance replacement units for large and medium-sized passenger road vehicle and kit cars such as bus, school bus, coatch, RV, citybus, travel bus.




Quick Details of  Bus Cooling Axial Flow Fan SPAL VA01-BP70/VLL-79S 24V

Model: Spal Brushed VA01-BP70/VLL-79S
Voltage: 24V
Warranty: 1 year
Brand Name: SPAL Fan
OE NO. : VA01-BP70/VLL-79S
Air Volume :  2850 m³/h
Blades diameter: 305mm, 12.0"
Number of blades: 5
Blades type: bent
Type: Axial Flow Fan
Customized support: OEM
Electric Current Type: DC
Mounting: FREE STANDING
Blade Material: Plastic
Place of Origin: China
Brand Name: Spal
After-sales Service Provided: Online support
Special Features: Spal Condenser Fan
Item Width: 330mm
Application Industry: Bus Air Conditioner
Blown Air OE: VA01-BP70/LL-79S
Suction Air OE: VA01-BP70/LL-66A
Product Name: Bus air conditioner condenser fan
Applicable Industries: cooling radiators and coils, agricultural machinery, off-road, refrigeration equipment, ventilation in 24 volt vehicles, universal use.




Spal VA01-BP70/VLL-79S Bus Vehicle Cooling Axial Fan Feature:

Low Power Consumption;
Super Long Service Life;
Maintenance-free;
Environment-friendly;
Short Circuit Protection;
Over-current Protection;
Over-temperature Protection;
Over-voltage Protection;
Under-voltage Protection;
Locked-rotor protection.
High Performance Cooling Axial Fans
Waterproof Long Life Motors
Suitable For Various Road Cars, such as bus & coatch cooling system
Universal Fitting




SPAL Axial Fan Mounting VA01-BP70/VLL-79S of Bus AC Parts

SPAL axial fans with diameters 255mm, 280mm, 305mm, 405mm are designed with an “A” suction blade optimized to give the best efficiency in one direction only, you can obtain both airflow directions out of the same fan simply by mounting the fan upside down.
SPAL recommend mounting a Brushless Fan within a cowling in order to cool the entire surface of the radiator/cooler and obtain the maximum efficiency available.



Bus Cooling Axial Fan Specification Classification:

12V VA01-BP70/VLL-79S
24V VA01-BP70/VLL-79S




Supply Ability of Bus Cooling Axial Fan SPAL VA01-BP70/VLL-79S Bus A/C Parts

Supply Ability:
30000 Piece/Pieces per Month




Packaging & Delivery of Bus Cooling Axial Fan SPAL VA01-BP70/VLL-79S

Packaging Details
Neutral package/Color package
Port: Shangai/ Ningbo
Lead Time: Shipped in 10 working days after payment




Bus A/C Parts Condenser Axial Flow Fan OEM NO.

Spal:
VA01BP70VLL79S

Yutong:
8114-00019



SPAL VA01-BP70/VLL-79S Bus Cooling Condenser Fan, Bus A/C Parts Supplier - VehicleACParts

VehicleACParts mainly supply bus condensor fan, bus cooling fan, Bus Cooling Axial Condenser Fan, Vehicle Water Tank Cooling fan, this bus vehicle cooling fan VA01-BP70/VLL-79S that our business deal widely used on Eiropean, American, Japanese, Korean, Chinese buses and trucks! Our water pump have good quality and competitive price!!!

The Axial Flow bus air conditioner cooling fan VA01-BP70/VLL-79S is for all kind of bus vehicle brand, such as Mercedes bus, Scania bus, Man buses, Volvo middel bus, Jelcz small bus, Autosan school bus, Solaris city bus, Neoplan minibus, YUTONG bus, GEELY citybus, BYD coach & buses. This bus engine water tank radiator fan adopts Italian imported brush and has a long service life. It has been supporting services with many manufacturers for many years, with an annual output of over 30,000 units, providing one year of free after-sales quality assurance.
Bus Air Conditioner Parts - Citybus Axial Cooling Fan, Bus Condenser Fan
Bus Cooling Axial Condenser Fan
Long service lifetime
Watertight throughout entire lifetime

Bus Cooling Fan SPAL VA01-BP70/VLL-79S Axial Flow Cooling Fan of Bus air conditioner condenser
Performance Chart

Static pressure

Airflow

Current input

Airflow

Static pressure

mm H20

m³/h

A

CFM

in H20

0

2850

8.5

1682

0

5

2630

8.9

1552

0.2

10

2360

9.3

1392

0.4

15

2000

9.5

1180

0.6

20

1550

9.8

915

0.8

25

1020

10

602

1

30

620

10.3

366

1.2

35

370

11

218

1.4

40

90

12

53

1.6


Axial Fan SPAL VA01-BP70/VLL-79S 24V for Bus air conditioner Cooling Fan

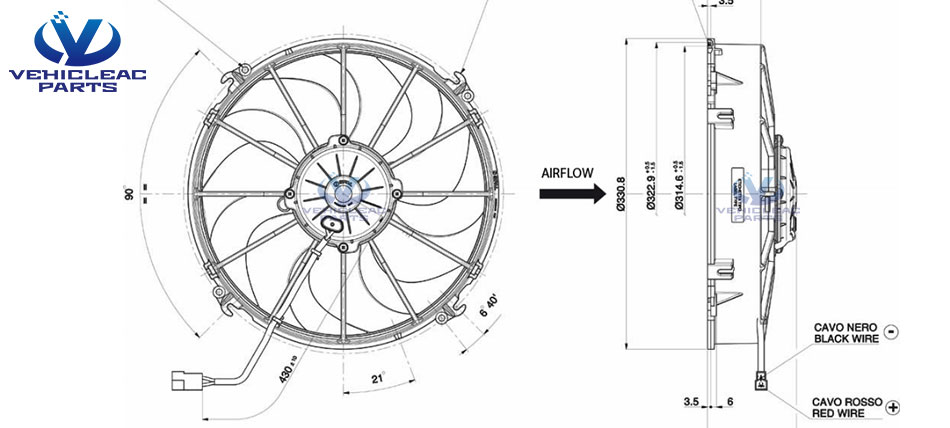

SPAL Axial Fan VA01-BP70/VLL-79S Drawing of Bus Air Conditioner Condenser Fan
drawing of Spal VA01-BP70/VLL-79S 24v Axial Flow Cooling Fan of Bus air conditioner condenser Fan - VehicleACParts
