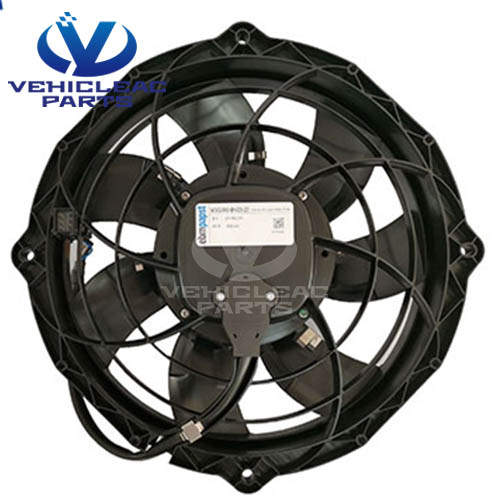

EBM Condenser Fan W3G300-BV25-23

Model:

Bus Condenser Fan EBM W3G300-BV25-23

Part Number:

1004-1201

OE:

EMB: W3G300-BV25-23; EMB: W3G300BV2523;

Description

Ebmpapst W3G300-BV25-23 26V 380 W 14.6 A Axial Flow Cooling Fan of bus air conditioner parts, Original

SEND INQUIRY

chat now

send email

bus air conditioner parts EBMPAPST Axial Flow Condenser Fan W3G300-BV25-23

bus cooling parts condenser fan EBM W3G300-BV25-23 EBMPAPST Axial Flow FAN

Bus air conditioner parts, condenser axial fan EBM W3G300-BV25-23 EBMPAPST

EMB Fan Technical data Related Products Inquiry

EBM Condenser Fan W3G300-BV25-23

EBM Condenser Fan W3G300-BV25-23 26V 380W Axial Fan Bus Cooling Fan Introduction

High efficiency, compact construction and superb reliability are the core requirements for modern bus condensor fan. Bus A/C Parts EBMPAPST W3G300-BV25-23 brushless Condenser fan has a longer service time and warranty period, it is mainly design for various bus air conditioner, and widely used in Chinese Yutong citybus air conditioning system, W3G300-BV25-23 26V 380W Axial Fan Cooling Fan is your best choose for vehicle air conditioner such as bus, rv, van, coach buses, citybus, school bus, and so on.

Quick Details of Bus Axial Flow Cooling Fan, Ebmpapst W3G300-BV25-23 26V of Bus A/C Parts

Type： Axial Flow Fan, Axial
Applicable Industries： Other
Customized support： OEM
Electric Current Type： DC
Mounting： FREE STANDING
Blade Material： Plastic
Place of Origin： Germany”}
Brand Name： ebmappst
Model Number： W3G300-BV25-23
Voltage： 26V, 26V
Warranty： 1 Year
After-sales Service Provided： Online support
Brand： Ebmpapst
Motor :M3G084-BF
Motor size: 84
Power consumption : 380W
Material： Plastic
Speed： 3940 RPM, 3940min-1
IP Rating： IP24
Current：14.6A
Noise： 80dB(A)
Bearing Type： Ball
Certification： complete certification
Ambient temperature -40°C-+110℃

Supply Ability of Bus Cooling Axial Condenser Fan EBM W3G300-BV25-23 Bus A/C Parts

Supply Ability:
30000 Piece/Pieces per Month

Packaging & Delivery of EBM Condenser Fan W3G300-BV25-23 Bus A/C Parts

Packaging Details
Neutral package/Color package
Port: Shangai/ Ningbo
Lead Time: Shipped in 10 working days after payment

EBM Condenser Fan W3G300-BV25-23 Bus A/C Parts Supplier - VehicleACParts

VehicleACParts mainly supply bus condensor fan, bus cooling fan, Bus Cooling Axial Condenser Fan, this bus vehicle cooling fan that our business deal widely used on Eiropean, American, Japanese, Korean, Chinese buses and trucks! Our water pump have good quality and competitive price!!!

The Axial Flow bus air conditioner condensor fan W3G300-BV25-23 is for all kind of bus vehicle brand, such as Mercedes bus, Scania bus, Man buses, Volvo middel bus, Jelcz small bus, Autosan school bus, Solaris city bus, Neoplan minibus, YUTONG bus, GEELY citybus, BYD coach & buses.

Bus Air Conditioner Parts - Citybus Cooling Axial Condenser Fan

Bus Cooling Axial Condenser Fan

Long service lifetime

Watertight throughout entire lifetime

Bus Condenser Fan EBM W3G300-BV25-23 EBMPAPST Axial Flow Cooling Fan of Bus Air Conditioner Parts

Technical data

Mass	2 kg
Size	300 mm
Material of impeller	PA plastic
Material of wall ring	PA plastic
Number of blades	7
Direction of air flow	V"
Direction of rotation	Clockwise, seen on rotor
Type of protection	IP 24 KM; (Motor); electronics IP 66 / 69 K
Insulation class	"B"
Humidity class	F4-1
Max. permissible ambient motor temp. (transp./ storage)	+110 °C
Min. permissible ambient motor temp. (transp./storage)	-40 °C
Mounting position	Any
Condensate discharge holes	None, open rotor
Operation mode	S1
Motor bearing	Ball bearing
Technical features	- Direction of rotation selection counter-clockwise / clockwise
	- Fault output (high-side switch max. 30 mA)
	- Output limit
	- Motor current limit
	- Soft start
EMC directives	ECE R10 Rev.3
Electrical leads	With plug
Motor protection	Reverse polarity and locked-rotor protection
Cable exit	Lateral

Condenser Fan EBM W3G300-BV25-23 for bus cooling system

EBM Condenser Fan W3G300-BV25-23 Drawing

drawing of EBM Condenser Fan W3G300-BV25-23 EBMPAPST Axial Flow Cooling Fan of Bus Air Conditioner Parts - VehicleACParts
