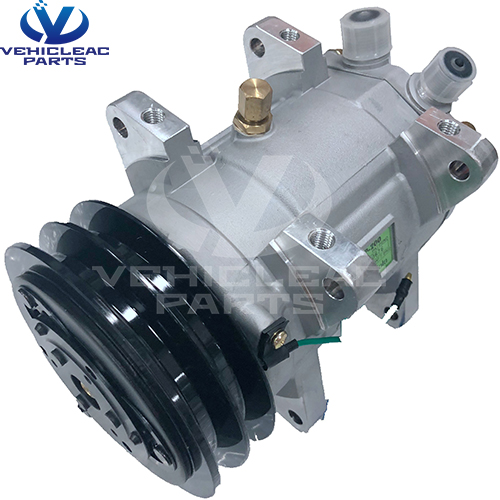

Unical UP-200 2B 145, 24V

Auto Air Conditioner Compressor Unicla UP-200 Compressor Description

Unicla Ø145mm 2G B UP200 is one kind of bus air conditioner compressor for mini bus air conditioning system, with 24V voltage, 2B grooves, 145 clutch, and the pulley diameter of clutch is 145mm, adopts Unicla 10-cylinder swashplate design, the displacement is 200 cc/rev, Maximum continuous can be reach 6000 rpm, which is very suitable for applications with a middle bus air conditioning system capacity requirement of 6-11 kW

The Features of Unicla UP200 | UPF200 Compressor in Auto Air Conditioner

1. Best Quality, using forged steel cylinder housing, Genuine NSK bearings throughout; Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
2. Fast Delivery
3. Best Service, smooth and quiet operation with excellent performance through all rev ranges
4. Long Life, clockwise and counterclockwise rotation with no change in volumetric efficiency
5. Competitive Price
6. Good seal, ensure big cooling capacity, adopts Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal); lip seal with high tolerance to heat and operational fatigue.



UNICLA UP200 Compressor Magnetic Clutch for Van Air Conditioning System

 A diverse range of van air conditioner unicla magnetic clutches is available for 12V and 24V applications for Unicla UP200 compressor, Pulley measurements are in millimetres

Unicla UP 200 Compressor with 2A 145mm Clutch
Unicla UP 200 Compressor with 2A 152mm Clutch
Unicla UP 200 Compressor with 1B 145mm Clutch
Unicla UP 200 Compressor with 2B 145mm Clutch
Unicla UP 200 Compressor with 2B 152mm Clutch
Unicla UP 200 Compressor with 6PK 125mm Clutch
Unicla UP 200 Compressor with 8PK 135mm Clutch



UNICLA COMPRESSOR, UP200-4215 2B 145 Auto Air Conditioner Details Introduction

OE NO.:UP200
Place of Origin:China (Mainland)
Brand Name:VehicleACParts
Type: Unicla 10-cylinder swashplate
Cooling capacity: 6-11KW
Displacement: 200cc/rev
Maximum continuous: 6000 rpm
Refrigerant: R134A
Oil: PAG56 (180 ml)
Car Model: Van, Middle Bus, Minibus, smalll school bus Compressor
Model: Van air conditioner compressor
Size: 19*19*27
Car Model: for Unicla up200
Pulley Diameter:145mm
Compressor Model: bus air conditioner compressor
Grooves: 2B
Voltage: 24v
Means: 39*29*40 CM
Type: Unicla 10-cylinder Swashplate Compressor
Car Make: for Unicla UP200
Model Number: R
Quality: High class
Appearance: Outstanding

Supply Ability
1000 Piece/Pieces per Month


UNICLA UP200 145 COMPRESSOR Packaging & Delivery Details

Single package : 32*21.5*21.5cm   10.5kgs
Qty: 4 PC/CTN ,Means:39*29*40 CM  , G.W.: Around 32kgs
Port : Qingdao , Tianjin , Lianyungang,  Ningbo, Shanghai


UNICLA UP 200 2B 145mm 24V Compressor Mini Bus Air Conditioner Supplier - VehicleACParts

VehicleACParts is a professional supplier in bus air conditioner parts, middle bus air conditioning parts, we can offer all parts such as compressor for Bitzer, Bock,Denso, Unicla, Thermoking & Clutch & Shaft seal & Condenser fan & Blower motor and Control panel etc.



Parameter of UNICLA UP-200 2B 145 Compressor

Type	Unicla 10-cylinder Swashplate Compressor
Compressor Model	Unicla UP-200
Pulley Diameter	145mm
Grooves	2B
Voltage	24v
refrigerant	R134
Cooling capacity	6-11KW
Displacement	200cc/rev
Maximum continuous	6000 rpm
Oil	PAG56 (180 ml)
Mounting	Ear mount
